Atlas – AWR3W

Description

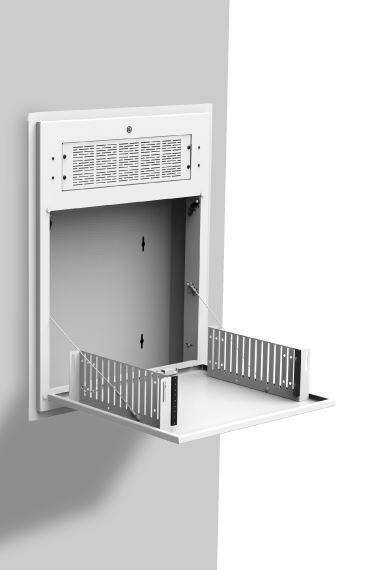

Convenient access and lock-in security highlights Atlas-Sound’s ­re-designed AWR3W – 3RU tilt-out wall cabinets for 19″ equipment. These re-designed welded models can be surface or recessed mounted (trim ring included) and include a 3RU panel ­opening above the main bay for connector panels or power distribution with a usable depth of 4″ for the AWR2W and 5.75″ for the AWR3W. These cabinets are perfect for mounting remote amplifiers and control ­equipment. The series features a 16-gauge CRS formed door frame with a 16-gauge CRS locking tilt-out door which closes against rack face plate. The surface mounting door is attached to the frame internally with 2 pin style hinges to prevent tampering. Doors can be opened to two positions—tilt-out for operation and by releasing side catches, the door will open to approximately 90° for ­equipment installation and maintenance. Units are furnished with two steel safety catch cables which suspend and hold doors at 90°. Front panels have 45-degree mitered edges to present a clean flush appearance. Back box is 16-gauge CRS equipped with six concentric ­knockouts of 1/2″ and 3/4″. AWR Series is shipped complete and ready for installation. Panel mounting holes accept 10-32 hardware. The Useable depth is 20″ (50.8cm) Top RU, 17.25″ (43.81cm) Bottom RU.
