Atlas-BMT95-4-7

Description

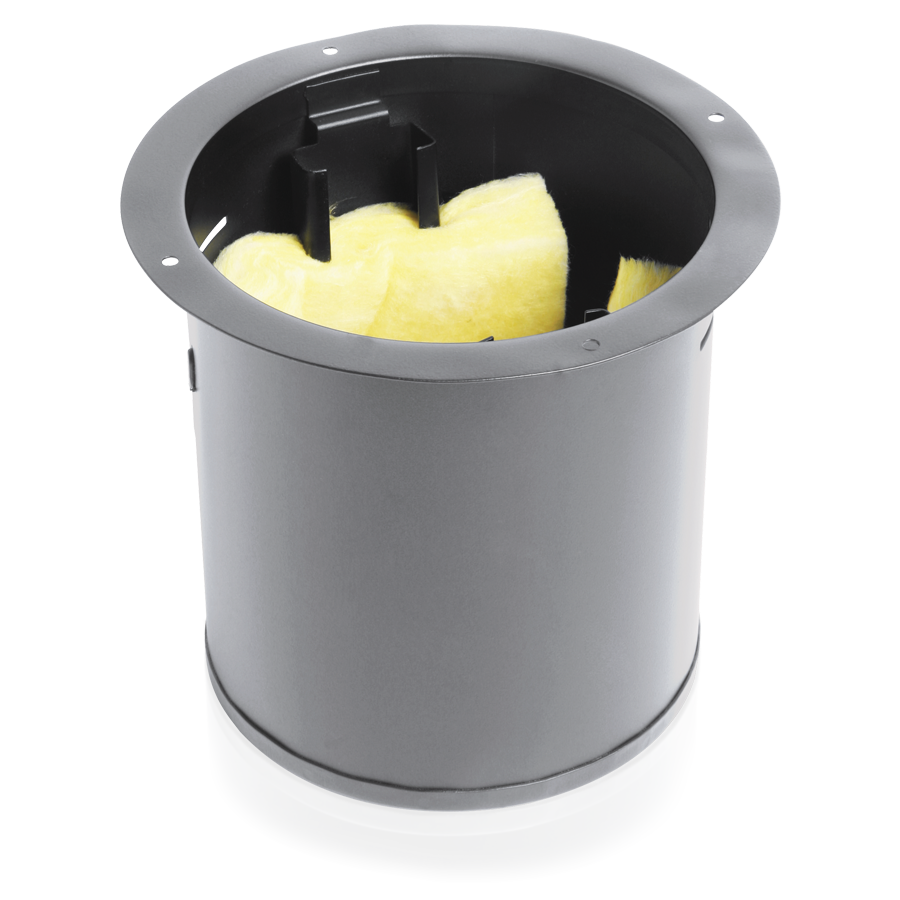

AtlasIED 4″ Blind-Mount enclosure system ( U.S. Patent # 4,673,149 ) provides an easy and cost-effective alternative for secure speaker installation in retrofit ceiling applications. All necessary hardware is provided including a unique support system with mounting ears that telescope out from inside the enclosure and adjust vertically to accommodate ceilings with a thickness of 1/2″ (13mm) to 1 3/8″ (35mm). Units feature CRS construction and include torsion-spring receptacles for quick mounting of torsion-spring grilles. (J-Nuts are also included on the return of the enclosure to accommodate surface-mounting grilles.) To allow cable access, enclosure backplates are manufactured with three 1/2″ (13mm) conduit knockouts. Enclosure is also equipped with sound damping material to minimize metallic resonance. Models are supported by two mounting ears and will accommodate AtlasIED torsion-spring grille Models T51-84 and T720-4BT which mount 4″ (102mm) speakers. BMT95-4-7 is a 7″ (178mm) deep extra-depth version which includes high-density fiberglass fill finished in a textured black epoxy.
