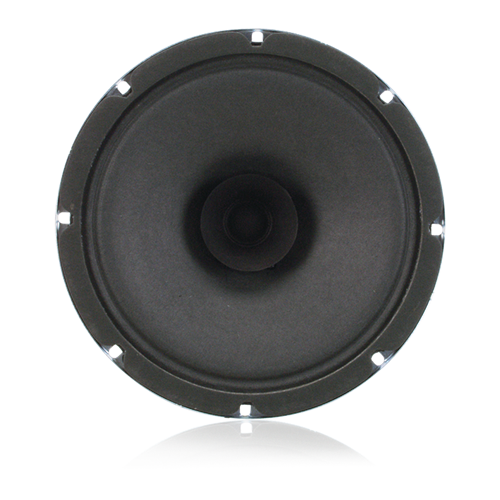

Atlas-C10A

Description

Model C10A is a dual cone, 25-watt 8″ (205mm) speaker with a 10 oz. (260g) ceramic magnet. It includes a curvelinear, treatedpaper cone for lower harmonic distortion. The speaker is also equipped with a full 1″ diameter copper voice coil with a blackanodized aluminum former for better power dissipation. Model C10A operates within a frequency response range of 45Hz – 19kHz with a sensitivity of 97dB and a dispersion angle of 105°. It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements. To ensure reliability and performance integrity, 100% of all C10A speakers are TEF-tested at the factory. AtlasIED operates a well-equipped, certified research laboratory which contains a fully anechoic chamber complete with analog Bruel & Kjaer measurement equipment and the TEF 20® audio analyzer.
