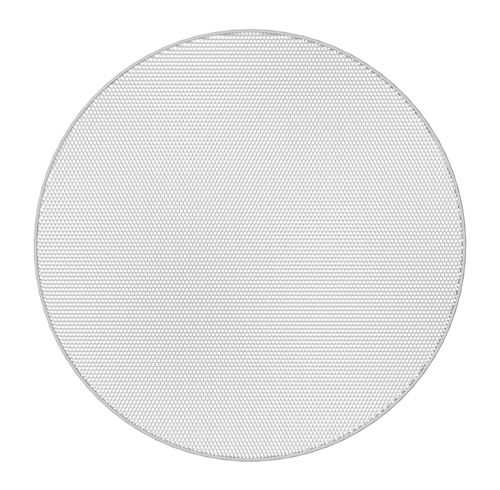

AtlasIED FAP33T-WEGR 3″ 70V/100V In-Ceiling Speaker with Edgeless Grille
The AtlasIED FAP33T-WEGR Strategy III is a compact 3″ full-range commercial ceiling speaker designed to deliver clear paging audio, smooth background music, and wide coverage for professional distributed sound systems.
Built on the proven AtlasIED Strategy Series platform, this speaker incorporates advanced waveguide design, optimized port tuning, and AtlasIED’s patented Safety First Mounting System to improve both performance and installation efficiency.
It is an ideal solution for retail spaces, restaurants, offices, hospitality venues, schools, and commercial facilities where reliable sound and fast installation are essential.
Wide Coverage for Distributed Audio Systems
The FAP33T-WEGR features an improved waveguide design providing up to 135° dispersion, allowing integrators to cover larger listening areas with fewer speakers while maintaining consistent sound distribution.
The ported enclosure improves low-frequency performance, delivering fuller audio and clearer music reproduction compared to conventional ceiling speakers.
Safety First Mounting System
AtlasIED’s patented Safety First Mounting System (SFMS) protects against mounting tab damage caused by over-tightening during installation.
The system uses integrated front-mounted T-handles, allowing installers to mount the speaker without drills or screwdrivers.
Key advantages include:
-
Tool-free installation
-
Prevents mounting tab damage
-
Faster installation times
-
Secure installation in ceilings from sheet metal up to ¾”
Designed for Reliable Commercial Installations
Commercial ceiling speakers often operate in environments exposed to humidity and temperature variations. The FAP33T-WEGR eliminates corrosion concerns by avoiding the use of metal screws in the mounting mechanism, ensuring dependable long-term operation.
The speaker is safety listed to UL1480 and UL2043, making it suitable for plenum ceiling installations and commercial audio systems.
Installer-Friendly Features
-
Front-mounted 70V tap selector switch
-
Transformer bypass for 6Ω direct connection
-
Detachable 4-pole Phoenix-style connector for easy pre-wiring
-
Simple daisy-chaining of additional speakers or subwoofers
These features help reduce installation time and labor costs on large commercial audio projects.
Specifications:
Speaker Type: Full Range
Sensitivity: 89.7dB (1W/1m)
Impedance: 2, 4, 8, 16 Watts & 6Ω:
Frequency Response: 110Hz – 12kHz
Dispersion: 135°
Certified Safetly Listing: UL1480 & UL2043
Datasheet:
