AtlasIED – FAP33T-WEGS

Description

AtlasIED FAP33T-WEGS 3″ 70V/100V In-Ceiling Speaker – 16W Transformer, Safety First Mounting System, Square White Edgeless Grille

AtlasIED FAP33T-WEGS 3″ Commercial In-Ceiling Speaker

The AtlasIED FAP33T-WEGS Strategy III is a high-performance 3″ full-range ceiling speaker designed for distributed commercial audio systems requiring clear announcements, balanced background music, and reliable installation.

Combining advanced acoustic design with AtlasIED’s patented Safety First Mounting System, this speaker offers wide sound coverage, improved bass response, and faster installation, making it a preferred choice for professional installers.

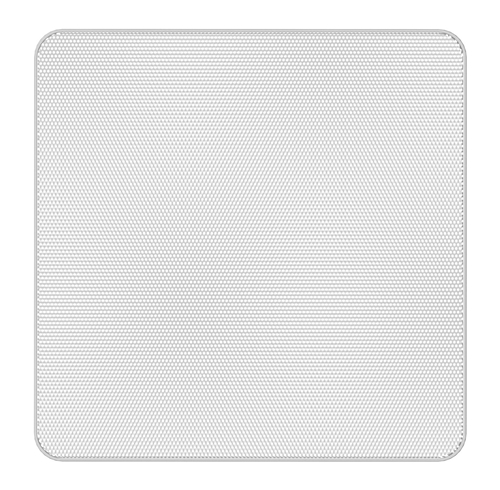

The square white edgeless grille design provides a modern architectural appearance that blends seamlessly into contemporary ceiling designs.

Wide Dispersion Coverage

The FAP33T-WEGS uses an improved waveguide design providing 135° dispersion, allowing fewer speakers to cover larger areas while maintaining consistent audio coverage throughout the space.

Its ported enclosure design enhances low-frequency performance, delivering fuller sound and improved music reproduction.

Patented Safety First Mounting System

The Safety First Mounting System (SFMS) protects against installation damage caused by over-tightening mounting tabs.

This innovative system uses front-mounted T-handles, enabling quick tool-free installation while preventing mounting tab failure.

Benefits include:

• Tool-free installation

• Faster installation times

• Prevents mounting tab damage

• Secure mounting in various ceiling materials

Ideal Applications

The FAP33T-WEGS is designed for distributed audio systems in:

• Retail stores

• Restaurants and cafés

• Hotels and resorts

• Casinos and entertainment venues

• Offices and conference spaces

• Convention centers

• Schools and institutional buildings

Key Features

• 3″ full-range commercial ceiling speaker

• 70.7V / 100V transformer with 16W maximum tap

• Square white edgeless grille for modern aesthetics

• 135° wide dispersion coverage

• Ported enclosure for enhanced bass response

• Safety First Mounting System (tool-free installation)

• Front-mounted tap selector

• Detachable Phoenix-style connection

Specifications:

Speaker Type: Full Range

Sensitivity: 89.7dB (1W/1m)

Impedance: 2, 4, 8, 16 Watts & 6Ω

Frequency Response: 110Hz – 12kHz

Dispersion: 135°

Certefied Safety Listing:UL1480 & UL2043

Datasheet:

https://www.atlasied.com/ats/5224/FAP33T-W-Datasheet.pdf
