Description

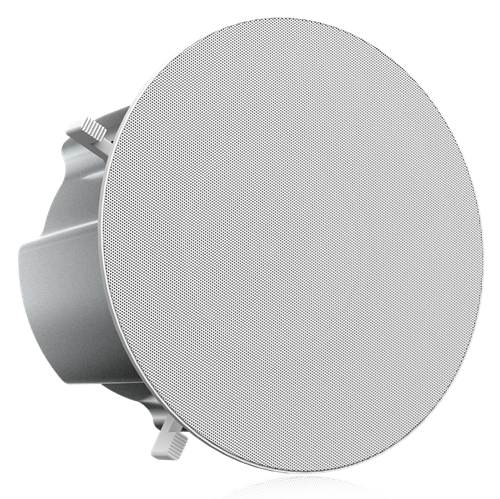

AtlasIED FAP6260T 6″ Coaxial In-Ceiling Speaker – 60W 70V/100V Transformer, Narrow Dispersion for High Ceilings

The AtlasIED FAP6260T Strategy Series 6″ coaxial in-ceiling speaker is engineered for commercial audio systems installed in higher ceiling environments where controlled sound coverage and high output are required. Featuring a 60-Watt 70V/100V transformer, ported enclosure, and narrow 60° dispersion, this speaker delivers clear speech intelligibility and balanced music reproduction for professional distributed audio systems.

Designed for business music and paging applications, the FAP6260T is ideal for retail stores, warehouses, gymnasiums, transportation hubs, large lobbies, and other spaces with higher ceilings where focused coverage helps maintain consistent sound levels.

The speaker utilizes a 6″ high-efficiency composite paper woofer with butyl rubber surround and a 20mm coaxially mounted silk dome tweeter, providing smooth high-frequency response and natural sound reproduction. Its 92 dB sensitivity allows integrators to achieve desired sound pressure levels with less amplifier power.

A factory-assembled deep drawn galvanized steel ported enclosure improves low-frequency performance while optimizing overall acoustic efficiency. The integrated low-saturation 70.7V/100V transformer ensures minimal insertion loss and reliable operation in distributed audio systems.

Installation is simplified with a front-mounted tap selector that allows power tap adjustment without removing the speaker from the ceiling. The 4-pole detachable Phoenix-style connector allows convenient pre-wiring and easy daisy-chain connections to additional speakers or subwoofers.

The FAP6260T includes a C-Ring and V-Rail tile bridge assembly with Strategy Series dog-leg mounting tabs, allowing fast and secure installation in both drop tile and drywall ceilings. A magnetically attached low-profile grille with security tabs blends seamlessly into modern architectural environments.

Certified to UL1480 safety standards, the AtlasIED FAP6260T provides dependable performance for professional commercial audio installations requiring controlled coverage in higher ceiling spaces.

Key Features

• 6″ coaxial in-ceiling speaker designed for higher ceiling applications

• 60-Watt 70V/100V transformer with 8Ω bypass

• Narrow 60° dispersion ideal for focused coverage in large spaces

• High-efficiency composite woofer with butyl rubber surround

• 20mm coaxial silk dome tweeter for smooth high-frequency response

• Ported deep drawn galvanized steel enclosure improves bass response

• Front-mounted tap selector for quick system configuration

• 4-pole detachable Phoenix connector for easy pre-wiring and daisy chaining

• Magnetic low-profile grille with security tabs

• C-Ring / V-Rail tile bridge and dog-leg mounting system for quick installation

• Suitable for retail, warehouses, gyms, transportation facilities, and large commercial spaces

• UL1480 safety listed
