Cloud- CDR1B

Description

Surface Remote for DCM-1/DCM-1e-Black (comes inW)?

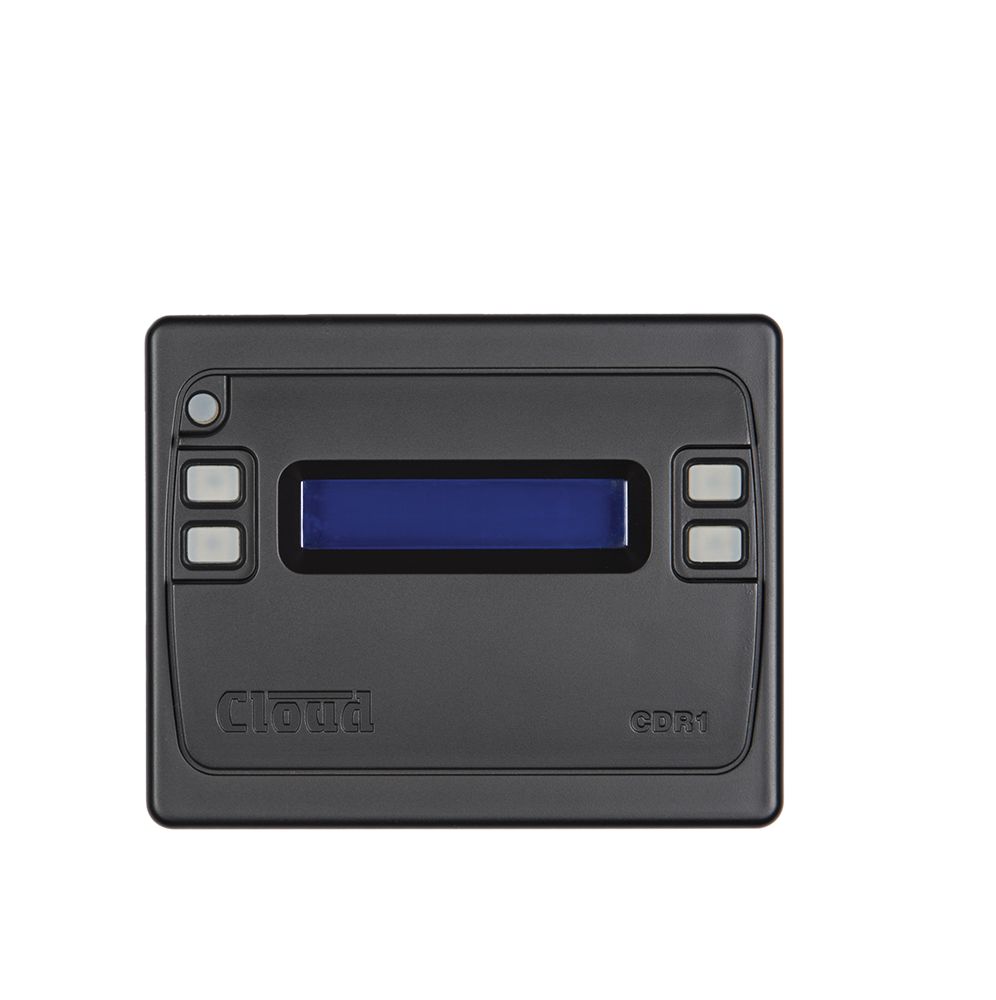

The CDR-1 is the surface-mount version of wall remote control (Black) for use with the DCM-1 and DCM1e Digital Control Mixer. The CDR-1 is fitted with the same alphanumeric display as the DCM-1, with menu navigation being by five push buttons. When installed in one of the DCM-1’s zones, it provides the user and installer with more convenient and practical control of system in addition to the DCM-1’s front panel.

A zone may have one CDR1 (or CDR1F), more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.

Note: A single CDR-1 CANNOT control Multiple Zones, this can only be achieved via the RS232 or Ethernet (DCM-1e only) control protocols, or the Web browser interface (DCM-1e only)

Features:

• CDR-1W (White) CDR-1B (Black)
• Enables remote control of Cloud’s DCM-1 Digitally Controlled Mixer
• Simple to install – connects to DCM-1 and other CDR1/1F’s using standard CAT-5 cable
• Can be interconnected using a wide choice of wiring topologies
• Choice of two mounting styles to suit installation
• Backlit 2-row x 16 character dot matrix alphanumeric display
• User accessible functions:
  • Source selection
  • Level control
  • Group enable/disable
• Engineer mode functions (password enabled):
  • Local zone EQ adjustment
• Installer mode (Enabled by internal jumper):
  • Zone assignment
  • Password setting
  • Display adjustment
  • Inactivity time (time for which display backlight remains lit after a button is pressed)

Datasheet:

https://www.cloud.co.uk/uploads/2022/01/CDR-1%20&%20CDR-1F_Datasheet_EN_v2.pdf
