Cloud-CDR1FW

Description

CDR-1FW – Flush Mount Remote for DCM-1/DCM-1e

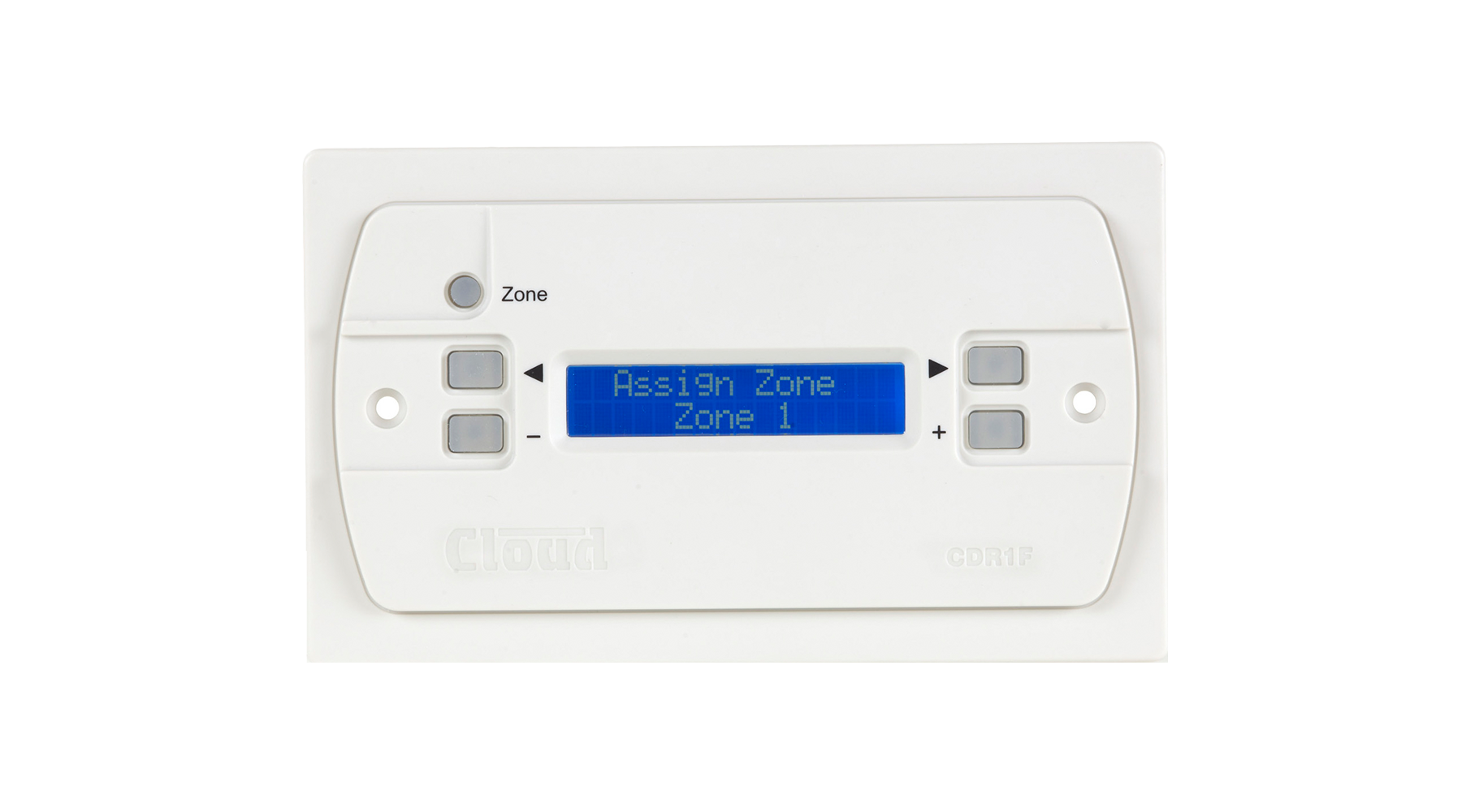

The CDR-1F is a flush-mount remote control panel for use with the Cloud DCM-1 & DCM1e Digital Control Mixer, fitted with the same alphanumeric display as the DCM-1, with menu navigation being by five push buttons. When installed in one or many of the DCM-1’s zones, the CDR-1F provides the user and installer with localised control of a zone.

A zone may have one CDR-1F, more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.

Features:

• CDR-1FW (White) / CDR-1FB (Black) / CDR-1FS (Silver)
• Enables remote control of Cloud’s DCM-1 Digital Control Mixer
• Simple to install – connects to DCM-1 and other CDR1/1F’s using standard CAT-5 cable
• Can be interconnected using a wide choice of wiring topologies
• Backlit 2-row x 16 character dot matrix alphanumeric display

User accessible functions:

• Source selection
• Level control
• Group enable/disable

Engineer mode functions (password enabled):

• Local zone EQ adjustment

Installer mode (Enabled by internal jumper):

• Zone assignment
• Password setting
• Display adjustment
• Inactivity time (time for which display backlight remains lit after a button is pressed)

Datasheet:

https://www.cloud.co.uk/uploads/2022/01/CDR-1%20&%20CDR-1F_Datasheet_EN_v2.pdf
