Cloud – CX261

Description

CX261 Single Zone Mixer

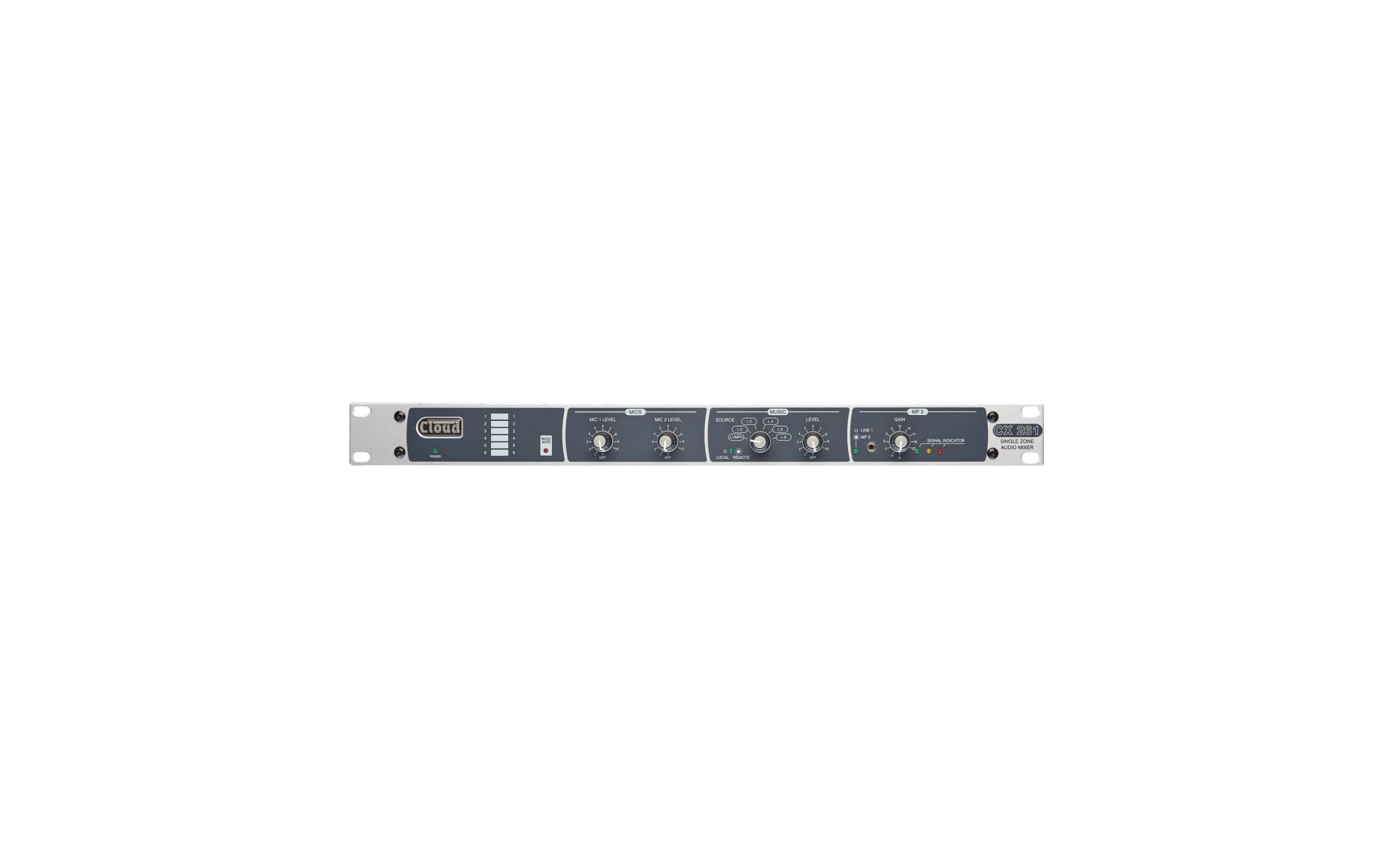

The Cloud CX261 is a 1U rack-mounting audio mixer ideal for use in bars, restaurants and other leisure sector premises, also offices, hotels and other multi-use areas where simple control of high quality background music needs to be combined with a flexible range of paging options.

Features:

• Six (unbalanced) stereo line inputs with individual gain control
• Two electronically-balanced mic inputs
• Front panel control of music source/level and mic level
• Front panel input (3.5mm jack) for MP3 player
• HF & LF EQ adjustment for music and mic inputs
• MIC 1 input configurable as transformer-isolated line input
• MIC 1 priority over MIC 2 (selectable)
• Short-to-ground access connector
• Selectable LINE 6 priority with choice of release times
• Music mute control input (NO or NC)
• Compatible with standard Cloud remote control panels
• Electronically-balanced stereo main output
• Transformer-isolated mono auxiliary output
• Aux output source selection (internal jumper)
• Optional Bose EQ cards available
• 1U 19” rack mounting unit

Datasheet:

https://www.cloud.co.uk/uploads/2022/01/CX261MK2%20datasheet_v1.1_cl2.pdf
