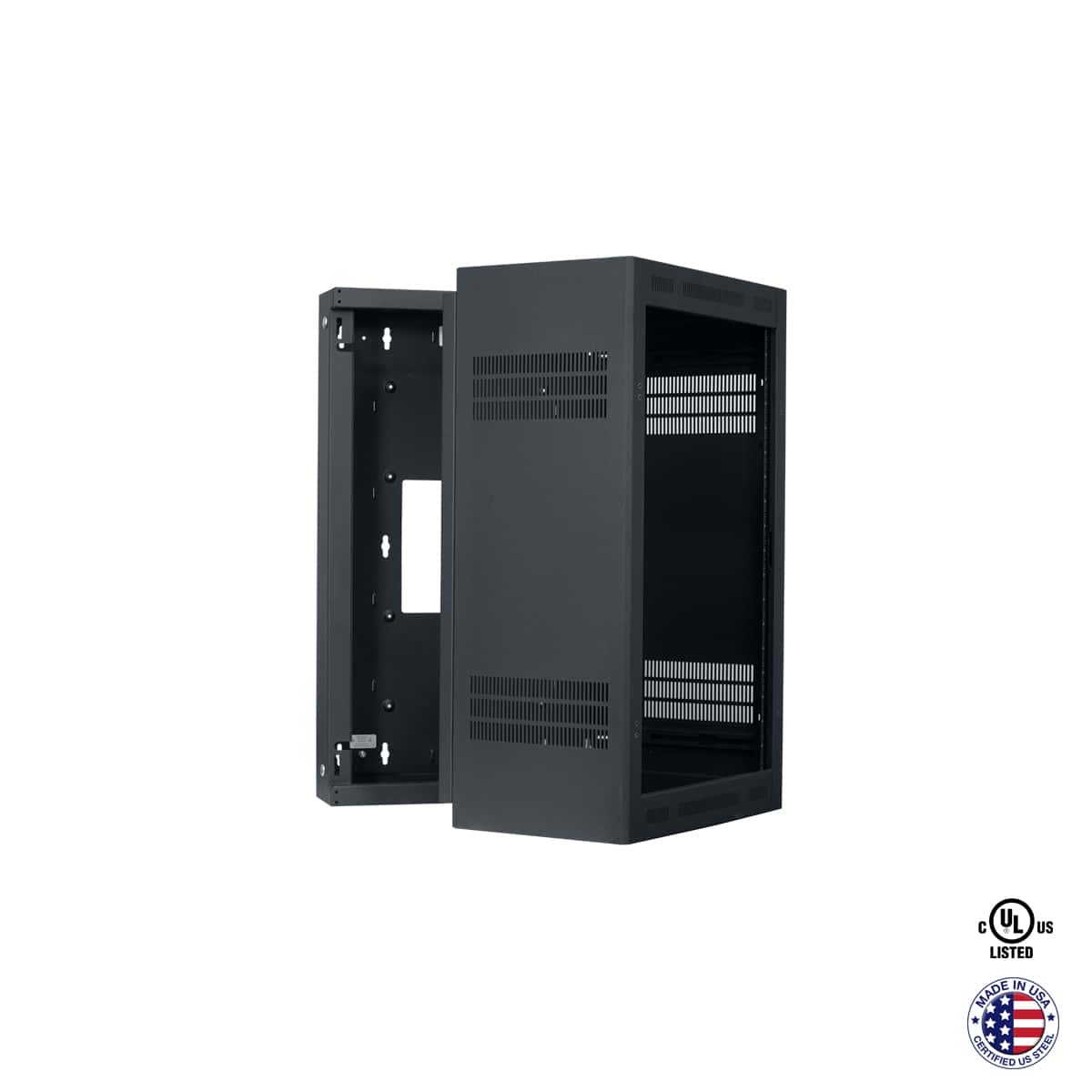

The heavy-duty wall rack features a front mounting section that swings open from its backbox, allowing easy access to cables and mounted equipment. The welded 16-gauge steel rack features fully-gusseted corners and a triple-formed wrap design that mounts to the backbox with positive-locking, spring-loaded L-pins. A roller closure keeps the front closed without mandatory locking. Optional front door, order separately.
Features:
Backbox: 5.80 in. deep with keyhole mounting slots on 16 in. centers, center opening to mount over electrical pull boxes, 1/4-20 ground stud, embossed dimples on back plane for installation of board-mounted accessories, knockout panels on top/bottom, two keyed side locks.
Front Mounting Section: Fully-gusseted corners, triple-formed wrap design mounts to backbox from inside with two heavy-duty spring-loaded L-pins, knockouts for wireless antennas, one-pair adjustable mounting rails tapped 10-32, integral rails on EIA spacing for mounting or lacing
Black-textured powder-coat finish
Pilot point screws with captive washers
Draw latch to pull mounting section and backbox together
