Description

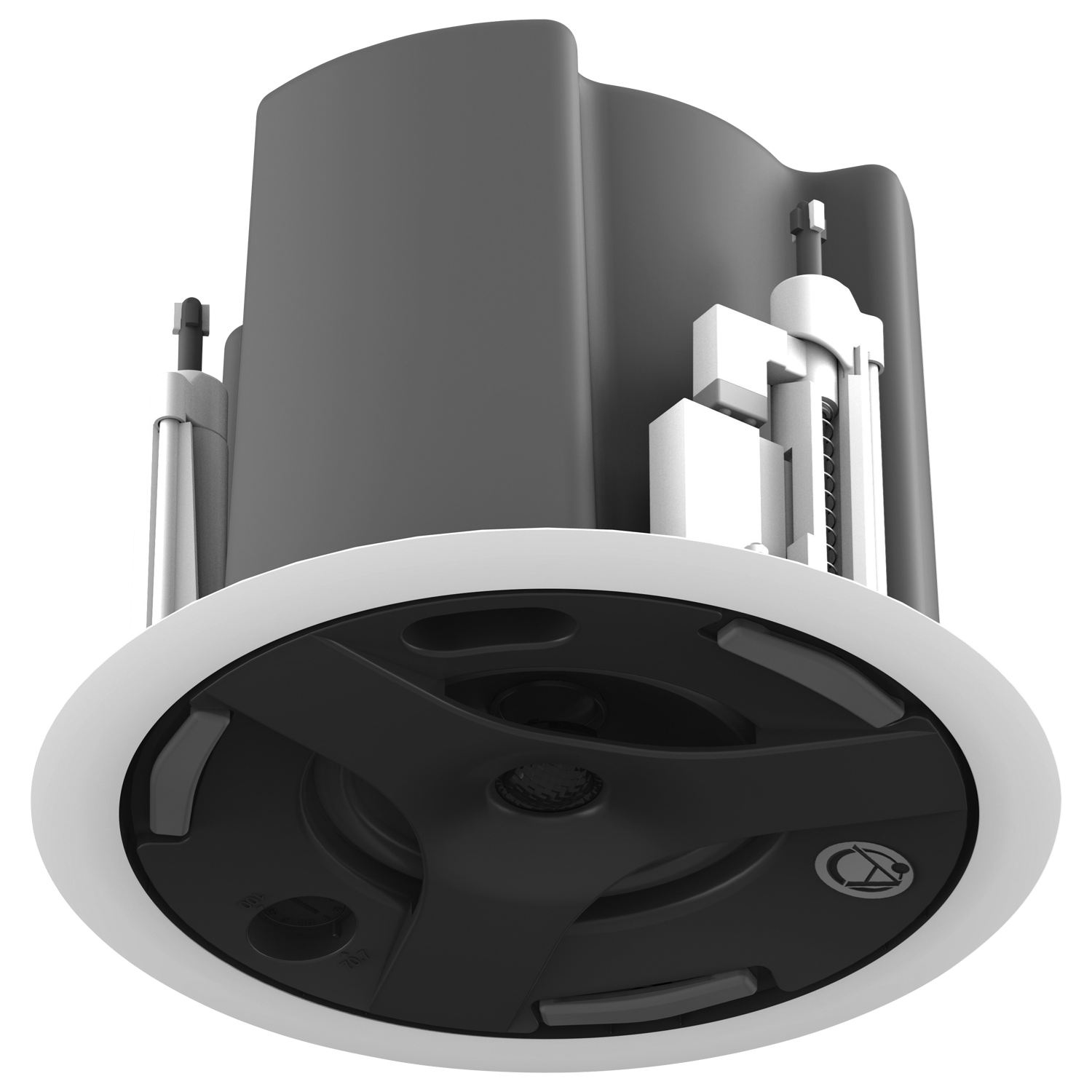

AtlasIED FAP43TUC-W 4.5″ Coaxial In-Ceiling Speaker – 32W 70V/100V Transformer, UL 1480 Fire Alarm Certified

The AtlasIED FAP43TUC-W Strategy III is a professional 4.5″ coaxial in-ceiling speaker designed for commercial audio systems and fire alarm voice evacuation applications. Featuring a 32-Watt 70V/100V transformer, ported enclosure, and Safety First Mounting System, this speaker delivers excellent speech intelligibility, clear music reproduction, and fast installation.

The FAP43TUC-W is UL 1480 certified, meeting the standard for Speakers for Fire Alarm and Signaling Systems. This certification allows the speaker to be used in code-required fire alarm and emergency notification systems in accordance with NFPA 72, making it ideal for life-safety installations where reliability and compliance are critical.

Built on the proven AtlasIED Strategy Series platform, the speaker incorporates an improved waveguide and bridge-mounted tweeter design to provide wider sound dispersion and uniform audio coverage. This allows system designers to reduce the number of speakers required while maintaining consistent sound levels throughout the space.

A ported enclosure design improves low-frequency response and enhances overall audio clarity for both paging and background music applications. The result is a balanced audio experience suitable for commercial environments such as retail stores, offices, restaurants, hotels, recreational facilities, and public venues.

Installation is simplified with AtlasIED’s Safety First Mounting System (SFMS). This patent-pending system prevents mounting tab damage caused by over-torque during installation. Integrated front-mounted T-handles allow installers to secure the speaker without tools, reducing installation time by up to 60% while ensuring reliable long-term mounting.

The front-mounted 70V tap selector enables quick system configuration, while the 4-pole detachable Euro-style connector supports easy pre-wiring and daisy-chaining of additional speakers or subwoofers.

Corrosion-resistant construction ensures dependable performance even in environments with varying humidity.

With UL1480 and UL2043 safety certifications, the AtlasIED FAP43TUC-W is a reliable solution for commercial distributed audio and code-compliant fire alarm speaker installations.

Key Features

• 4.5″ coaxial in-ceiling speaker for commercial audio systems

• UL 1480 certified for fire alarm and signaling systems (NFPA 72 compliant)

• UL 2043 plenum rated for use in air handling spaces

• 32-Watt 70V/100V transformer with multiple power taps

• Safety First Mounting System (SFMS) prevents mounting tab damage

• Tool-free installation with integrated front-mounted T-handles

• Installation time reduced by up to 60%

• Improved waveguide and bridge-mounted tweeter for wider dispersion

• Ported enclosure enhances low-frequency response

• 4-pole detachable Phoenix-style connector for pre-wiring and daisy chaining

• Press-fit grille blends into modern architectural spaces

• Trap door input section supports rigid or flexible conduit wiring

• Corrosion-resistant construction for humid environments

Key Features

• 4.5″ coaxial in-ceiling speaker for commercial audio systems

• UL 1480 certified for fire alarm and signaling systems (NFPA 72 compliant)

• UL 2043 plenum rated for use in air handling spaces

• 32-Watt 70V/100V transformer with multiple power taps

• Safety First Mounting System (SFMS) prevents mounting tab damage

• Tool-free installation with integrated front-mounted T-handles

• Installation time reduced by up to 60%

• Improved waveguide and bridge-mounted tweeter for wider dispersion

• Ported enclosure enhances low-frequency response

• 4-pole detachable Phoenix-style connector for pre-wiring and daisy chaining

• Press-fit grille blends into modern architectural spaces

• Trap door input section supports rigid or flexible conduit wiring

• Corrosion-resistant construction for humid environments

Technical Specifications
